Description
Original accessory mounts and replacement parts for the Rhinowalk Space Station BKJ0951 3.3L Handlebar Bag. Choose the exact part you need from the accessory options above.
Each option is sold separately. Your purchase includes only the components listed for that selected model. The bag, bicycle, phone, cycling computer and camera are not included.
Choose your Space Station accessory
| Model |
Accessory |
Included items |
| XM10502-A |
31.8mm Handlebar Quick-Release Mount |
Female mount base XM10502-01 ×1; 31.8mm handlebar clamps XM10502-02-001 ×2; hex wrench ×1; M4×20mm screws ×4. |
| XM10502-04 |
25.4mm Handlebar Reducer Shims (4 pcs) |
Handlebar reducer shims XM10502-02-002 ×4. Outer diameter: 31.8mm; inner diameter: 25.4mm. |
| XM10503-A |
Aluminum Flange Bracket |
Flange bracket XM10503-03-001 ×1; hex wrench ×1; M4×8mm screws ×2. |
| XM10503-B |
31.8mm Aluminum Extension Tube |
Extension mount cylinder XM10503-03-002 ×1; M5×10mm screw ×1; hex wrench ×1; washer ×1 (5mm inner diameter, 9mm outer diameter, 0.6mm thickness). |
| XM10504-A |
Quad Lock Adapter Bracket |
Quad Lock adapter bracket XM10504-01-001 ×1. |
| XM10504-B |
Garmin Mount |
Garmin mount XM10504-01-002 ×1; 2.5mm hex wrench ×1; M4×8mm screws ×2. |
| XM10504-C |
GoPro Action Camera Mount |
GoPro mount XM10504-01-003 ×1; 2.5mm hex wrench ×1; M4×8mm screws ×2. |
| XM10504 |
Garmin / Quad Lock / GoPro Expansion Kit |
Garmin mount XM10504-01-002 ×1; Quad Lock adapter bracket XM10504-01-001 ×1; GoPro mount XM10504-01-003 ×1; 2.5mm hex wrench ×1; M4×8mm screws ×6. |
Compatibility and installation
- These components are designed for the Space Station mounting system. Check your existing mount and select the matching component before ordering.
- XM10502-A clamps fit round 31.8mm handlebars. Use the XM10502-04 reducer shims for 25.4mm handlebars.
- For mounting the BKJ0951 bag, allow 51–70mm between the handlebar clamps and at least 170mm from the bottom of the handlebar to the top of the front wheel.
- Handlebar mounting is not recommended on carbon fiber handlebars.
- The Garmin, Quad Lock and GoPro options are the specified adapter components; a compatible device or case is required and sold separately.
- Check the accessories already included with your bag before buying additional parts.
Materials
XM10502 and XM10503 mounting parts: black aluminum alloy. XM10504 adapter parts: black nylon and stainless steel hardware.
Packaging details by model

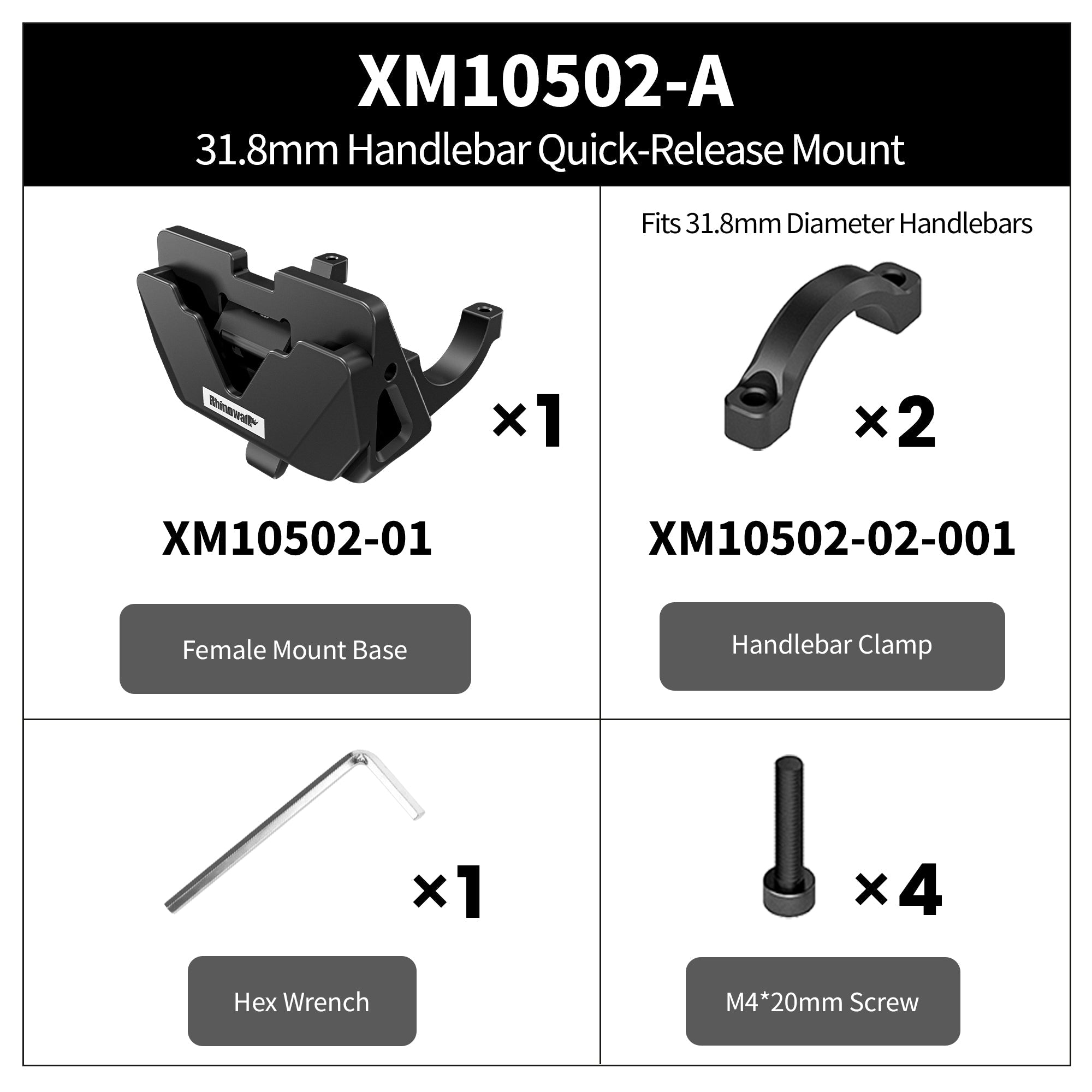

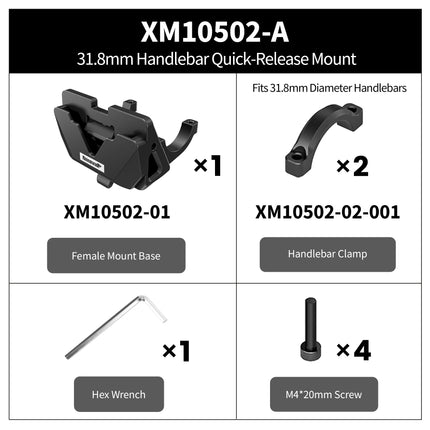

XM10502-A — 31.8mm Handlebar Quick-Release Mount
Female mount base XM10502-01 ×1; 31.8mm handlebar clamps XM10502-02-001 ×2; hex wrench ×1; M4×20mm screws ×4.

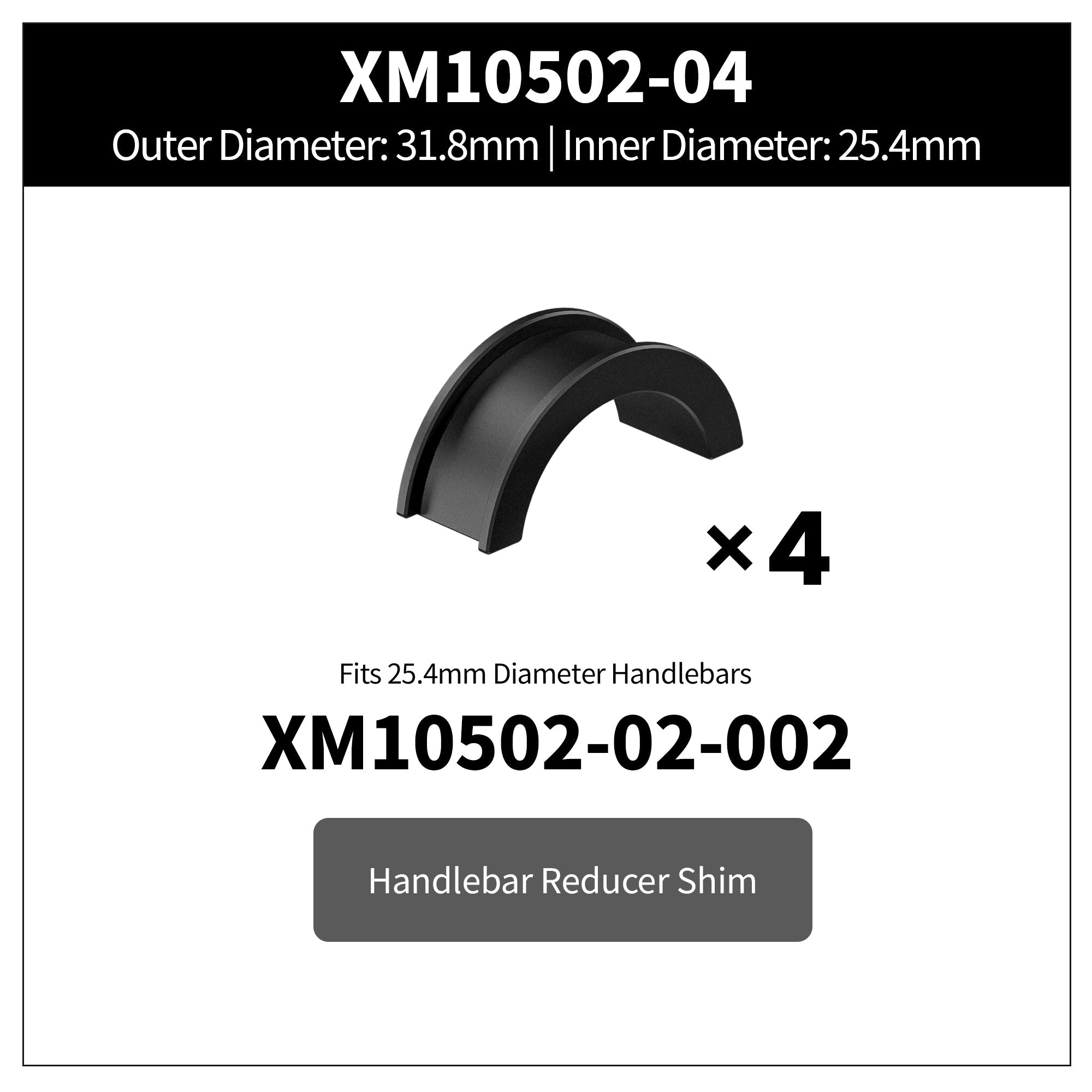

XM10502-04 — 25.4mm Handlebar Reducer Shims (4 pcs)
Handlebar reducer shims XM10502-02-002 ×4. Outer diameter: 31.8mm; inner diameter: 25.4mm.

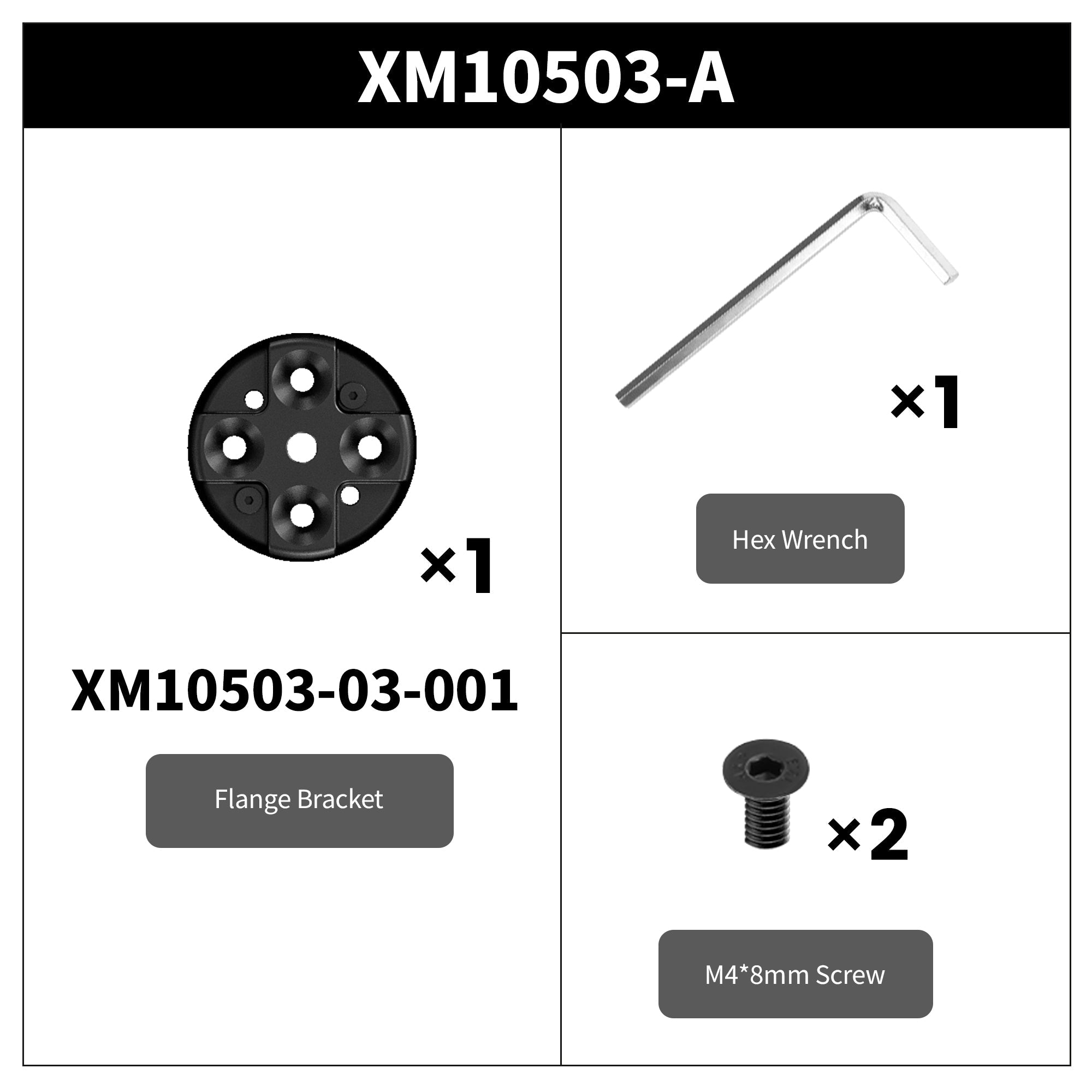

XM10503-A — Aluminum Flange Bracket
Flange bracket XM10503-03-001 ×1; hex wrench ×1; M4×8mm screws ×2.

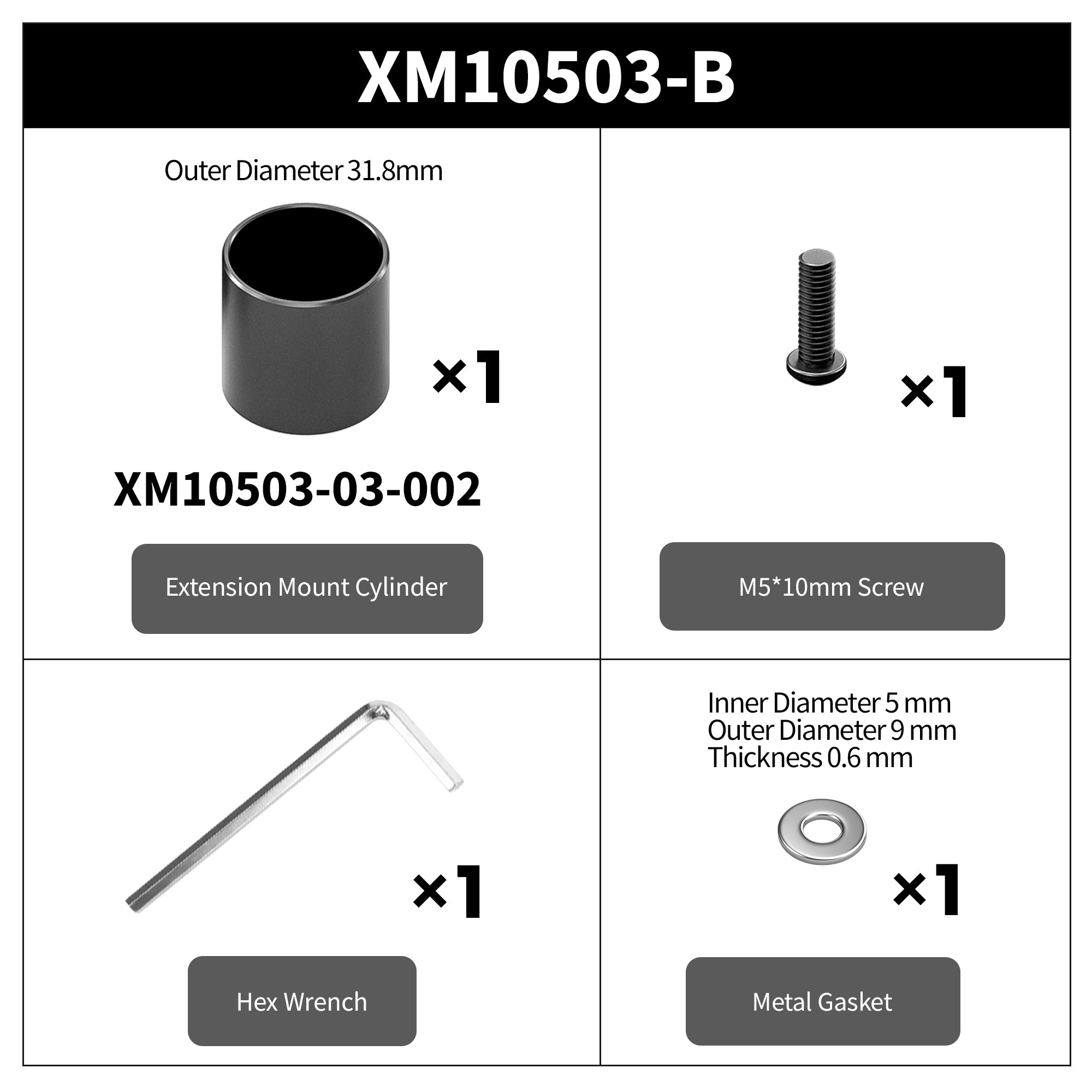

XM10503-B — 31.8mm Aluminum Extension Tube
Extension mount cylinder XM10503-03-002 ×1; M5×10mm screw ×1; hex wrench ×1; washer ×1 (5mm inner diameter, 9mm outer diameter, 0.6mm thickness).

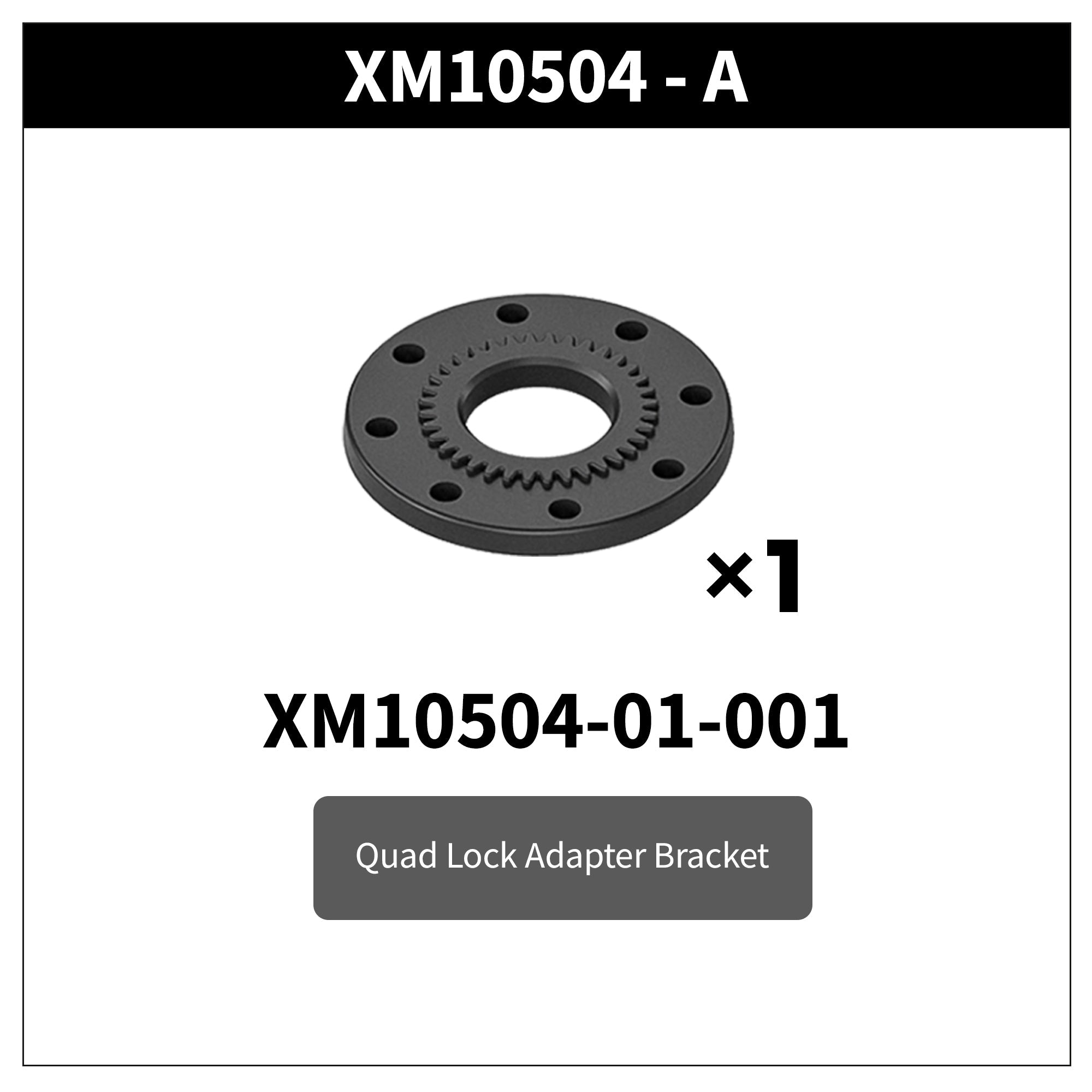

XM10504-A — Quad Lock Adapter Bracket
Quad Lock adapter bracket XM10504-01-001 ×1.

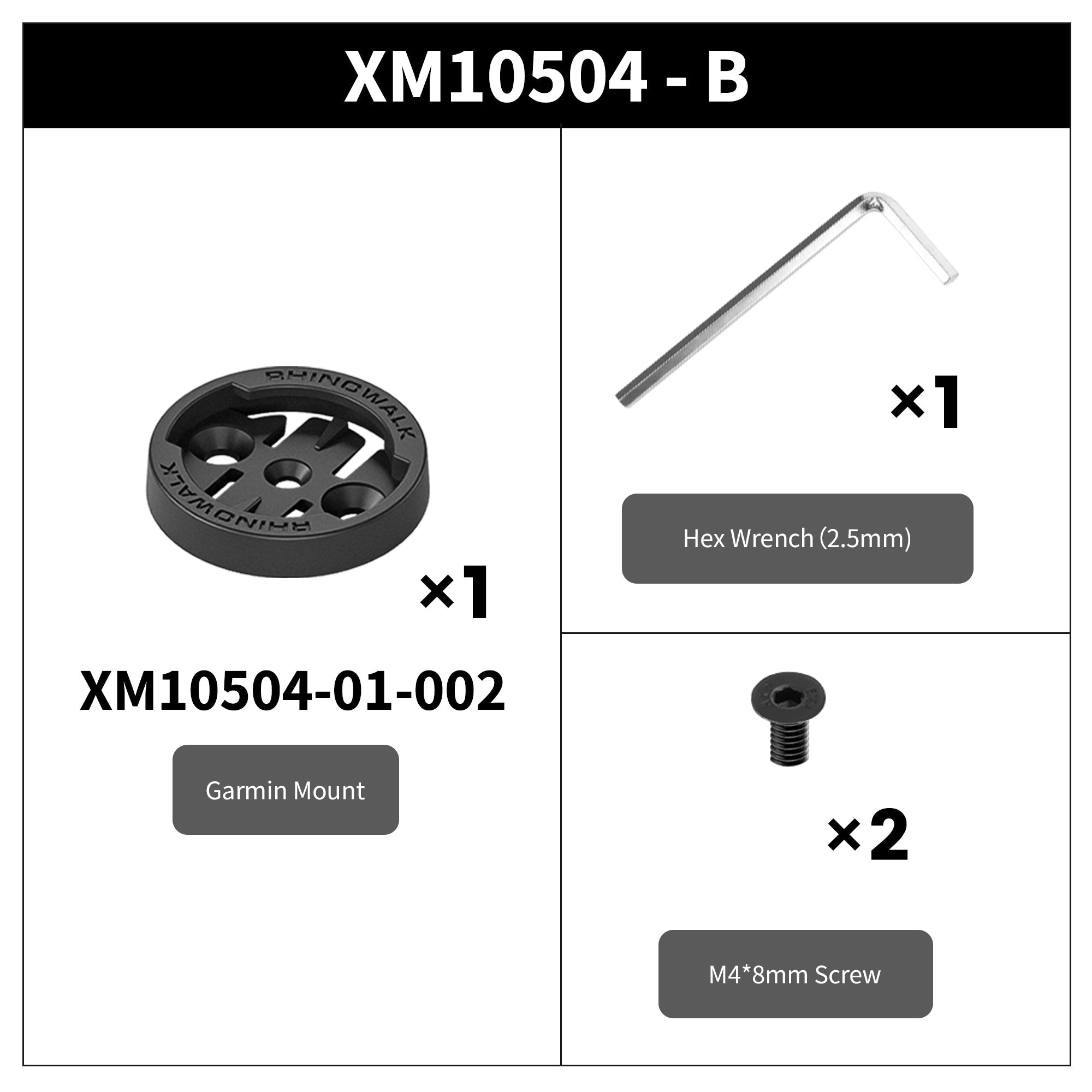

XM10504-B — Garmin Mount
Garmin mount XM10504-01-002 ×1; 2.5mm hex wrench ×1; M4×8mm screws ×2.

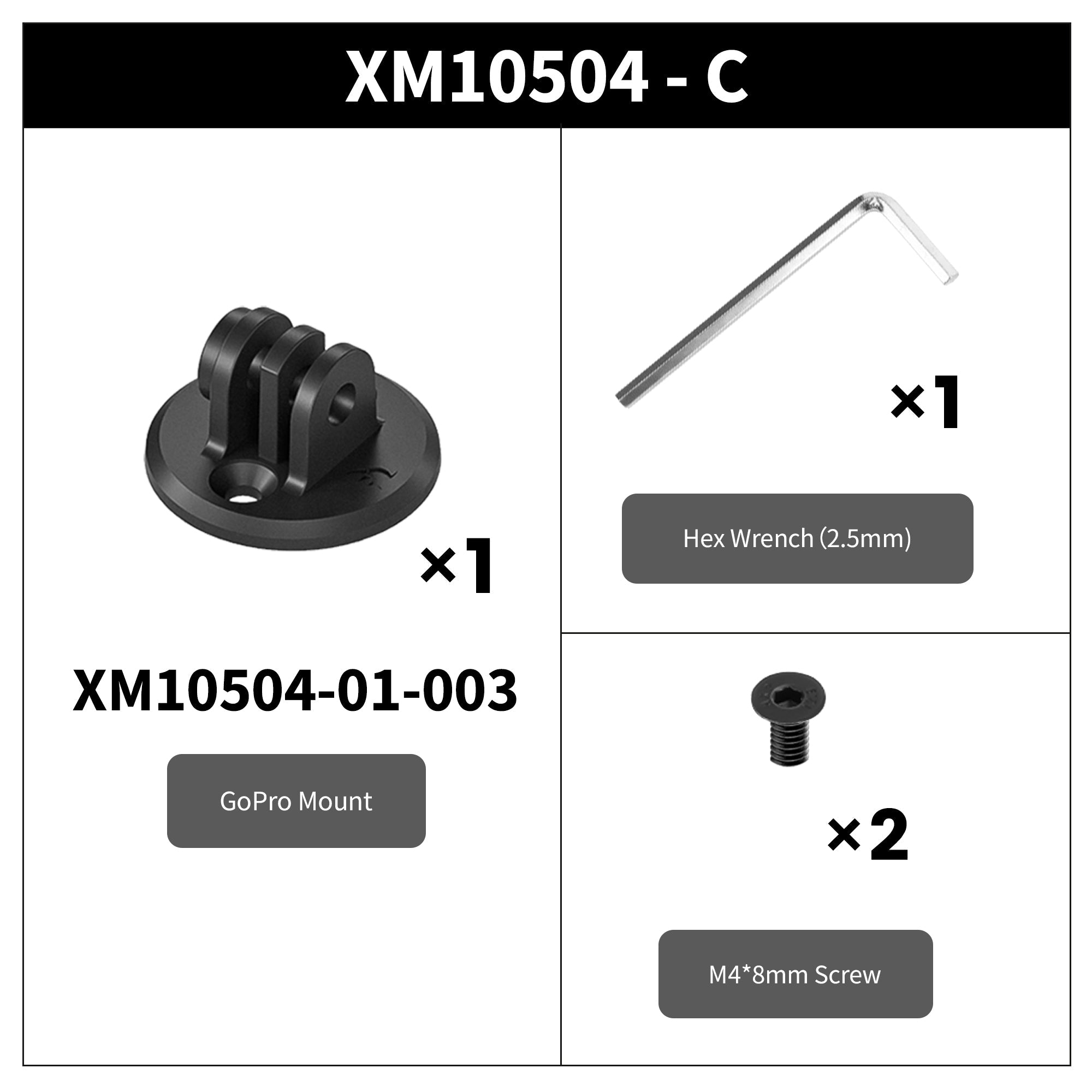

XM10504-C — GoPro Action Camera Mount
GoPro mount XM10504-01-003 ×1; 2.5mm hex wrench ×1; M4×8mm screws ×2.

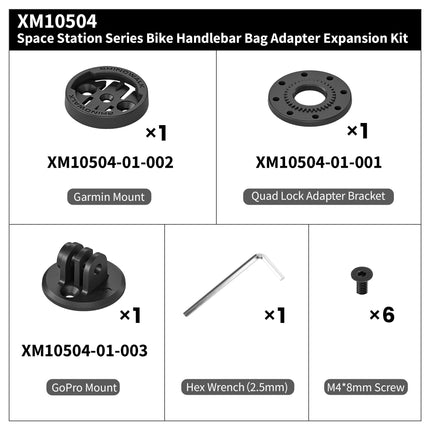

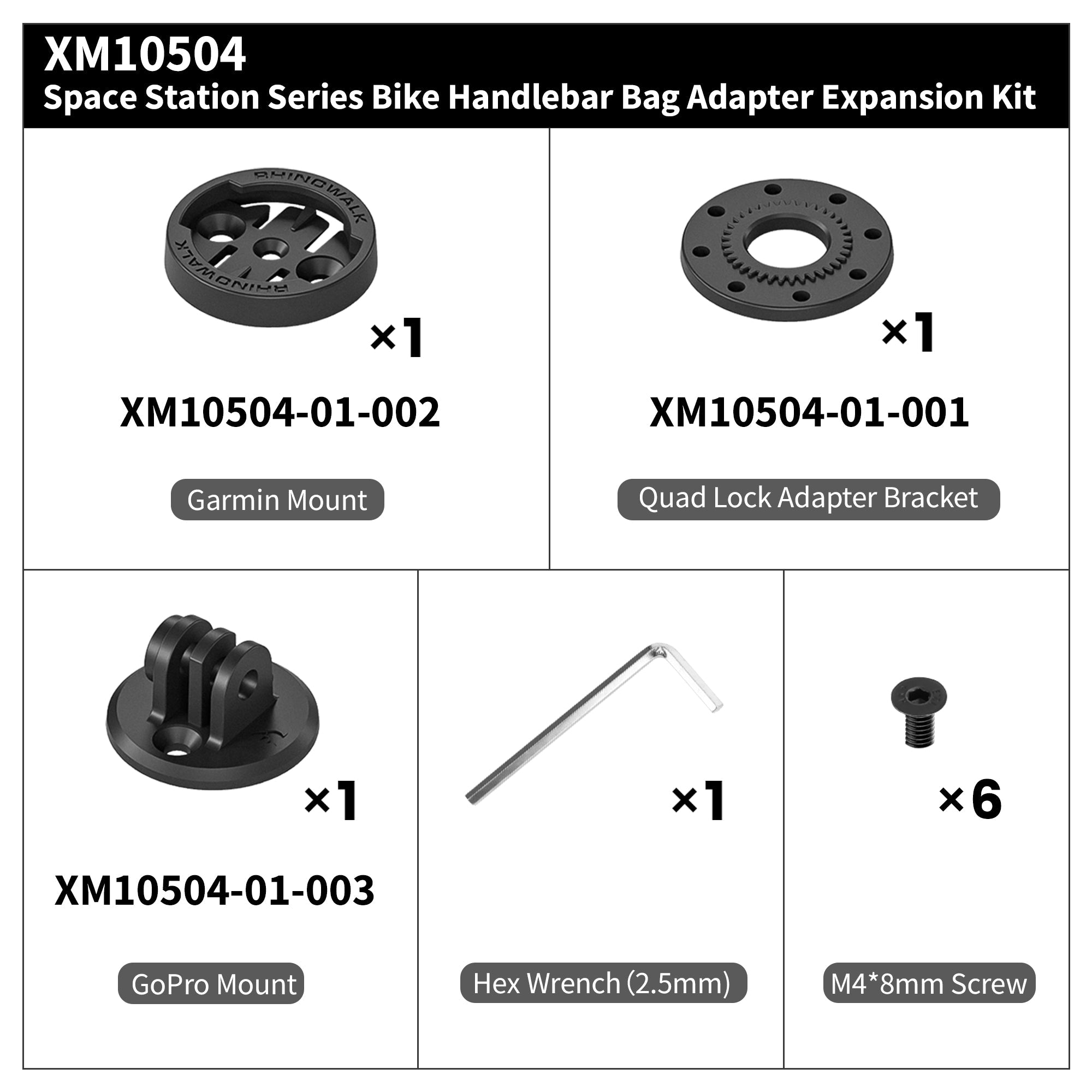

XM10504 — Garmin / Quad Lock / GoPro Expansion Kit
Garmin mount XM10504-01-002 ×1; Quad Lock adapter bracket XM10504-01-001 ×1; GoPro mount XM10504-01-003 ×1; 2.5mm hex wrench ×1; M4×8mm screws ×6.
